flexible gear coupling
As one of leading flexible gear coupling manufacturers, suppliers and exporters of mechanical products, We offer flexible gear coupling and many other products.
flexible gear coupling

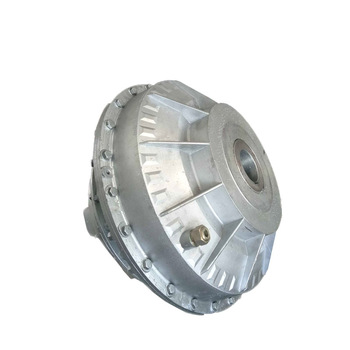

Professional hydraulic fluid coupling manufacturer EP450 hydraulic gear flexible fluid coupling
elaatic block as its driving parts,of which,the elastic block is a soft part with compensated installation and decentraction,Turbion and Turbion shaft make up slave part,normally prolong the time of working machine for 10-22 seconds.
Diaphragm Steel Flexible Gear Coupling
The structure of diaphragm coupling is mainly composed of stainless steel sheet (steel sheet), semi-coupling, intermediate sleeve, pressing element, bolt, anti-loosening nut, limit washer and so on.
The diaphragm coupling has a strong ability to compensate the misalignment of the two axes. Compared with the gear coupling, the angular displacement can be twice as large. When the radial displacement occurs, the reaction force is small and the flexibility is large. It allows certain axial, radial and angular displacements.
Popular products
FGC 14 Couplings- Geared Flexible Coupling
We deal in Standard FGC 14 Type Flexible coupling . The FGC Type coupling consists of 2 standard Hubs with Crowned external teeth and 2 outer sleeves with internal spur teeth.
Standard FGC Type Curved Tooth Gear Flexible Coupling with radially removable inserts
Easy Maintenance
It is recommended to to fill coupling with grease or oil for lubrication and smooth functioning.
FGC 14 Type Gear Coupling is available in Stock in our India warehouse . We have Fenner coupling Spare Pins/Bolts with nuts and washers in Stock as well. We keep Fenner Gear coupling in almost all sizes for Ready Dispatch. Contact us for Pricing or Standard Pricelist.
Flexible Gear Couplings
Get Latest Price
Torsiflex-I Disc Couplings
Torsiflex-i disc couplings are specifically designed for process pump and general industrial applications. Torsiflex is an all-metal disc coupling requiring no lubrication which incorporates a plug-in feature to allow installation and removal without disturbing the pump alignment.
Advantages
- Standard coupling is fully compliant with the requirements of API 610 / ISO 14691
- Plug-in spacer design allows installation and removal without disturbing the hubs
- Inch series hub attachment screws (Metric available upon request)
- Robust disc pack design allows for greater torque load in a smaller coupling, resulting in lower weight
- Large bolts for high clamp load, increasing frictional torque load, and reduced bolt bending stress
- Max bores matched to NEMA motor shafts, resulting in up to 60% weight savings per application
Flexible Gear Couplings
Flexible couplings are usually used to transmit torque from one shaft to another when the two shafts are slightly misaligned. They can accommodate varying degrees of misalignment up to 3° and some parallel misalignment. In addition, they can also be used for vibration damping or noise reduction.
When properly selected, installed and maintained, they can provide long life and good reliability. Gear couplings offer several advantages over other couplings, including moderate misalignment capacity, exceptional torsional stiffness and very high torque density.
G-Flex Coupling
State-of-the-art design from Bibby Transmissions, the original grid coupling manufacturer. G-Flex/Bibby 2000 Series is an all-metal coupling that provides positive protection against the damaging effects of shock loads and vibration. Aluminum horizontal cover (T10), and all-steel vertical cover (T20) designs are available. G-Flex tapered grid couplings are an excellent choice where torsional flexibility/vibration damping are primary concerns.
- Easy to assemble / replace
- Part-for-part interchangeable with industry standard tapered grid coupling designs
- Coupling sizes 1020 through 1140 in-stock in a range of standard bore sizes
- Shot-peened tapered grid flex element for long life
Industrial Gear Couplings
In order to fulfill the ever changing demands of our clients, we have been engaged in offering a quality range of flexible gear coupling. Manufactured using optimum-grade material, these couplings are easily adjustable into any kind of industrial machines. The material used in the production process is sourced from most trusted vendors of the market. Post-production, all our products are stringently inspected by the quality controllers on certain parameters to ensure their flawlessness.
Full-flex Gear Couplings
The torque transmission system is by spherical gear teeth, where the torque is transmitted by the primary shaft from the hub to the sleeve and vice-versa to transmit the torque to the secundary shaft. There is no rigid conecction between hub and sleeve. This gives the chance to correct misalignements, those that results from the assembly, as well as those that appear from the use and wear or the thermal expansion.
For a long life, it is necessary a good maintenance, giving especial attention to the gearing lubrication.
“
